f you’ve ever driven past a busy railway yard, a construction site, or a heavy industrial plant, chances are you’ve seen a gantry structure at work without even realizing it. These tall, bridge-like steel frameworks quietly do some of the heaviest lifting — literally — in India’s infrastructure and industrial sectors.
In this blog, we’ll break down what a gantry structure actually is, how a gantry girder fits into the picture, where these structures are used, and why choosing the right gantry structure manufacturer in Ghaziabad can make or break your project’s safety and efficiency.
Let’s get into it.
What Is a Gantry Structure?
A gantry structure is essentially a rigid, load-bearing steel framework built to support cranes, conveyors, signals, or other heavy equipment that needs to move horizontally across a fixed path. Think of it as a “bridge” for machines rather than vehicles — one that spans an opening (like a workshop bay, a rail track, or a road) and carries the weight of whatever travels along it.
Gantry structures are commonly built using rolled steel sections, fabricated plate girders, or trussed frameworks, depending on the load they need to carry and the span they need to cover. They’re designed to handle:
- Vertical loads (the weight of the crane or equipment itself, plus whatever it’s lifting)
- Horizontal loads (braking forces, wind loads, and lateral thrust from moving equipment)
- Dynamic/impact loads (sudden jerks from lifting or stopping heavy material)
Because they carry such significant and repetitive stress, gantry structures are engineered with a good safety margin and built to relevant Indian and international structural codes.
What Is a Gantry Girder?
Here’s where people often get a little confused — a gantry girder is not the same as the entire gantry structure. It’s a specific, critical component within it.
A gantry girder is the horizontal steel beam that runs along the top of the gantry structure’s supporting columns. Its job is to carry the crane’s wheel loads as the crane (or trolley) travels back and forth. In simple terms, if the gantry structure is the skeleton, the gantry girder is the “track” that the crane rides on.
Gantry girders are usually designed as:
- Simply supported girders – Most common for standard industrial spans; economical and easy to fabricate.
- Plate girders – Used for heavier loads or longer spans, made by welding steel plates into an I or box section.
- Lattice/truss girders – Preferred where very long spans or lighter self-weight is required.
Because a gantry girder experiences both vertical bending (from the crane’s weight) and lateral bending (from horizontal crane movement), its design involves careful calculation of bending moments, shear forces, and deflection limits — usually in accordance with codes like IS 800 (general steel structure design) and IS 807 (design and erection of cranes and hoists).
Where Are Gantry Structures and Girders Used?
These structures aren’t limited to one industry. You’ll typically find them in:
- Manufacturing plants and workshops – supporting overhead travelling cranes (EOT cranes) for material handling
- Steel and cement plants – handling raw material movement across large spans
- Railway yards and stations – supporting signal gantries and overhead electrification (OHE) structures
- Ports and container yards – for container gantry cranes

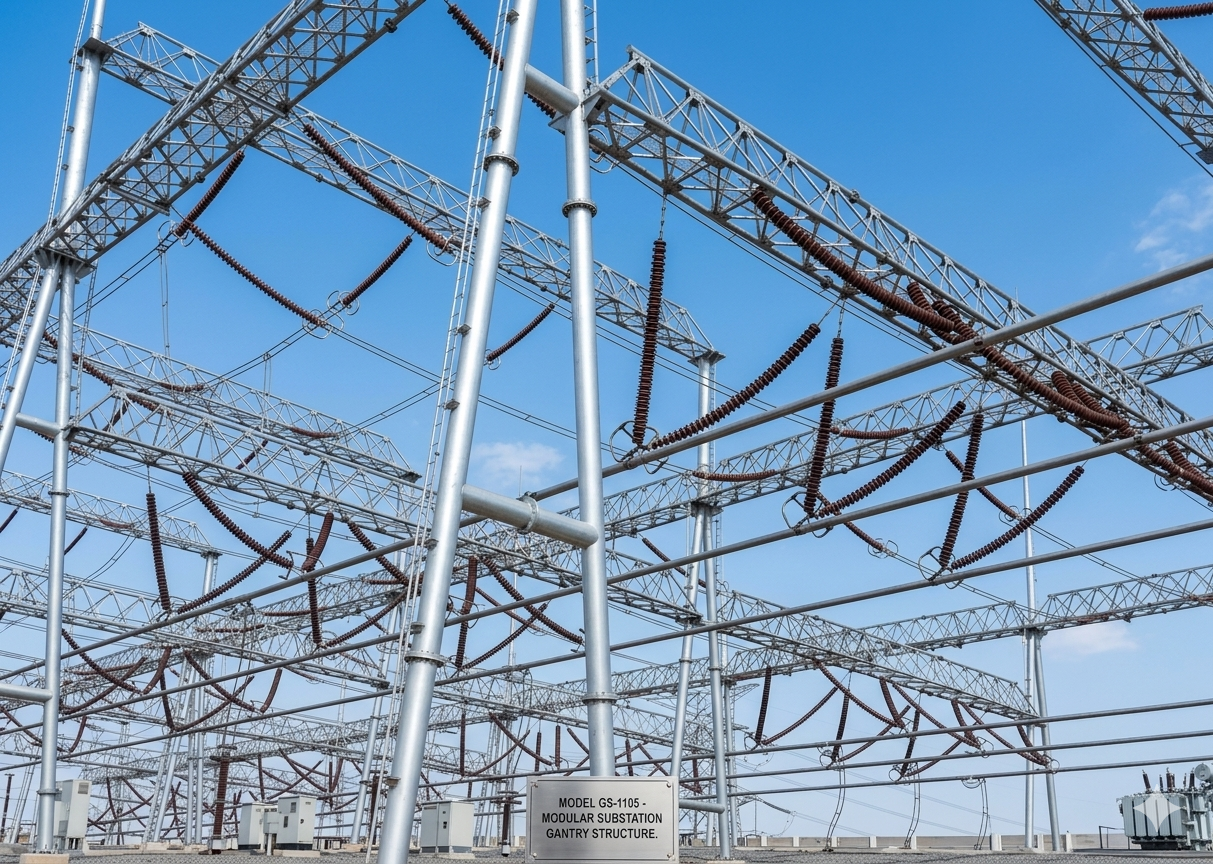

- Power plants and substations – for equipment handling and cable/conductor support
- Highway and toll infrastructure – as signage or monitoring gantries over roads
Each application demands a slightly different design approach, which is why working with an experienced fabricator matters as much as the raw steel quality.
Why Design and Fabrication Quality Matter So Much
A poorly designed gantry girder can lead to excessive deflection, fatigue cracking, or even structural failure over time — especially under repetitive crane loading. Since these structures often operate in industrial environments with continuous use, even small design or welding errors can compound into major safety and downtime issues.
That’s why it’s important to work with a manufacturer who understands:
- Load calculations specific to your crane capacity and span
- Proper material grade selection (usually IS 2062 structural steel)
- Precision welding and fabrication standards
- Corrosion protection (galvanizing or quality painting systems)
- On-site erection best practices
This is exactly where Friends Engineers India comes in.
Friends Engineers India: A Trusted Gantry Structure Manufacturer in Ghaziabad
Ghaziabad has long been part of the industrial belt surrounding Delhi-NCR, home to a strong base of steel fabrication expertise, raw material availability, and logistics connectivity — making it a natural hub for structural steel manufacturing.
Since 1998, Friends Engineers India has been manufacturing and supplying steel poles and fabricated structures to infrastructure and industrial clients across the country. Led by Mr. Praveen Kumar Gupta, the company has built its reputation on a simple principle: deliver durable, standards-compliant products, on time, every time.
While the company is well known for its range of MS steel tubular poles, GI poles and bends, steel structures, pole brackets, and trusses, the same in-house engineering and fabrication capability extends naturally into gantry structures and gantry girders — products that demand the same precision, load-bearing expertise, and quality control the company has practiced for over two decades.
If you’re evaluating a gantry structure manufacturer in Ghaziabad, here’s what sets a dependable one apart:
- Engineering support for custom load and span requirements
- In-house fabrication rather than third-party outsourcing
- Adherence to relevant IS codes and client specifications
- Transparent timelines and project execution
- After-sales support for erection and maintenance guidance
Related Reading on Our Site
Since gantry structures are just one part of a much bigger structural steel ecosystem, you may also find these useful:
- Explore our range of MS steel tubular poles for lighting and transmission applications
- Learn more about our GI poles and bends manufactured for durability in outdoor conditions
- Check out our steel structures and trusses built for industrial and infrastructure projects
- See our pole brackets designed for lighting and utility mounting
(Note: Please swap these placeholder links with the exact live URLs of the respective product pages on friendsengineersindia.com before publishing.)
Frequently Asked Questions (FAQs)
Q1. What is the difference between a gantry structure and a gantry girder? A gantry structure is the complete steel framework — columns, bracing, and beams — that supports moving equipment like cranes. A gantry girder is just the horizontal beam within that structure on which the crane’s wheels travel.
Q2. What material is typically used for gantry girders? Gantry girders are usually fabricated from structural steel conforming to IS 2062, chosen for its strength, weldability, and consistent mechanical properties.
Q3. How is the size of a gantry girder decided? It depends on factors like crane capacity, span length, wheel spacing, and the number of duty cycles the crane will perform. A qualified structural engineer calculates these based on relevant load combinations from IS 875 and design codes like IS 800/IS 807.
Q4. Can gantry structures be customized for specific industries? Yes. Gantry structures are almost always custom-engineered based on the specific load, span, and application — whether it’s an EOT crane in a factory, a signal gantry on a railway line, or a signage gantry over a highway.
Q5. Why should I choose a local gantry structure manufacturer in Ghaziabad instead of a distant supplier? Working with a manufacturer based in Ghaziabad/NCR often means shorter lead times, easier site visits for design verification, lower transportation costs, and faster after-sales support — all of which matter for time-sensitive industrial projects.
Q6. Does Friends Engineers India provide custom fabrication for gantry structures? Friends Engineers India brings over two decades of experience in fabricating steel structures, poles, and industrial components as per client specifications and applicable standards, making them well-positioned to support gantry structure and gantry girder requirements as well.
Final Thoughts
Gantry structures and gantry girders may not be the flashiest part of industrial infrastructure, but they’re absolutely essential — quietly carrying tons of load, day after day, across factories, railways, and ports all over India. Getting the design and fabrication right isn’t just about compliance; it’s about long-term safety and operational efficiency.
If you’re planning a project and looking for a reliable gantry structure manufacturer in Ghaziabad, Friends Engineers India’s decades of fabrication experience and commitment to quality make them a strong partner to explore.
